SENSO Frame LVL Beam

SENSO Frame LVL Beam

SENSO Frame LVL Beam

Short Description:

SENSO Frame LVL – the premier choice for structural projects demanding superior strength and reliability. Our Frame LVL, engineered from sustainably sourced timber, stands out for its unmatched strength, stiffness, and dimensional stability. SENSO Frame LVL is your go-to solution for framing LVL needs, delivering an uncompromising performance even in the most challenging structural conditions. Lighter, straighter, and more uniform than conventional materials, SENSO Frame LVL is redefining the industry standards of LVL timber. Trust SENSO Frame LVL for your construction needs, and experience the assurance of a top-grade, environmentally-conscious product that exceeds industry standards. Discover the advantage of SENSO Frame LVL today.

Product Detail

SENSO® Frame LVL Beam (Laminated Veneer Lumber) Beams are engineered wood products, built for superior strength, stiffness, and dimensional stability. These beams are manufactured using rotary peeled veneers laid up with parallel grain orientation. The production process meticulously disperses or removes the strength-reducing characteristics of wood, such as knots, grain slope, and splits, thereby ensuring a highly predictable and uniform lumber product. This engineered configuration results in LVL beams that are dimensionally stable and resist warping and twisting, providing a reliable and robust framing material for commercial constructions..

SENSO® is China’s earliest Structural LVL manufacturer and whosaler with a world class factory in China. It is also the only China brand structural LVL that has obtained the most comprehensive JAS-ANZ standard certification.
SENSO Frame LVL Beams exceed many JAS-ANZ standards, having passed AS 4357 certification. This recognition underscores SENSO’s commitment to quality, ensuring high performance and reliability in all its products.

Frame LVL Beam

SENSO Frame LVL Beams enhance structural integrity through their superior load-bearing capacity, high modulus of elasticity, and exceptional dimensional stability. Resistant to humidity, they are ideal for various environments. These attributes ensure that SENSO Frame LVL Beams maintain the overall structural integrity of buildings, making them an indispensable part of commercial construction.

As a leading manufacturer and wholesaler of construction materials, SENSO is driven by the passion to deliver performance and quality. By focusing on stringent manufacturing processes and leveraging innovative technologies, SENSO ensures that each Frame LVL Beam stands up to the highest standards. Whether it’s for large-scale commercial buildings or more intimate residential projects, SENSO provides the perfect balance of durability and cost-effectiveness.

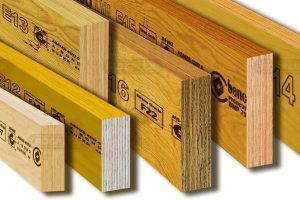

Range of SENSO Frame LVL Beams Series

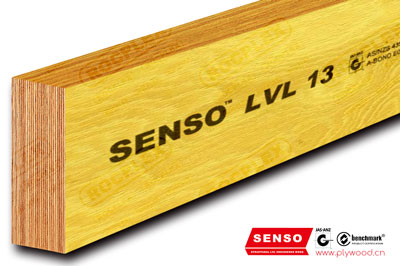

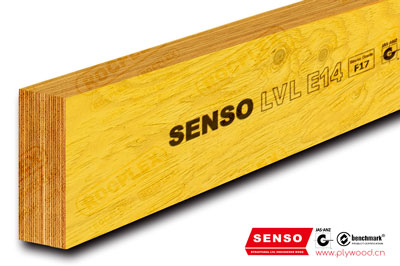

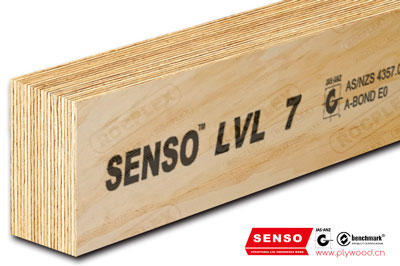

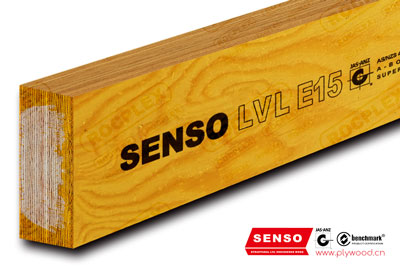

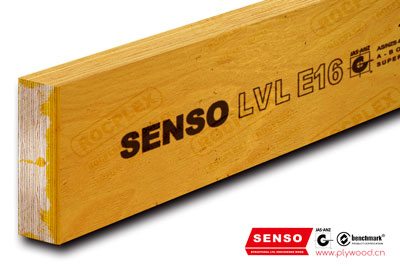

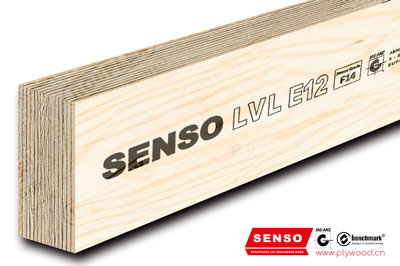

SENSO Frame LVL Beam E7 SENSO Frame LVL Beam E12 SENSO Frame LVL Beam E13 SENSO Frame LVL Beam E14 SENSO Frame LVL Beam E15 SENSO Frame LVL Beam E16
SENSO E7 SENSO E12 SENSO E13 SENSO E14 SENSO E15 SENSO E16

SENSO Frame LVL Beams series offers a broad range of options, with products from E8 to E16.
SENSO LVL is currently the construction LVL with the widest range of certified sizes in China.

SENSO Frame LVL Beam Standard Sizes

Thickness (mm) Depth (mm)
70 90 100 120 100 140 170 190 200 240 290 300 360 400 450
27 SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO
35 SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO
45 SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO
63   SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO
65   SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO
75   SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO SENSO
Length Availability 3.6m, 4.2m, 4.8m, 5.4m, 6.0m, Other lengths are available by special manufacture up to 12m
* Available in lengths of 6.0m only

SENSO Frame LVL Beam Specifications

Veneer Thickness Joint Group
Constant through the product thickness JD3 – for nails, bolts and screws
Joints Bond
Scarf and / or butt jointed A Bond – AS/NZS 2098.2
Moisture Content Branding
8% – 15% (at time of despatch) Each piece of SENSO LVL is branded as least once with the product name for identification and evidence of compliance with manufacturing control standards
Dimensional Tolerances
Available on request
Straightness Storage
Available on request Store on level bearers at maximum 1800mm centres well clear of the ground, and cover to keep dry but allow ventilation
Density
650-780 kg/m³ (approximately) Source
  Plantation timber




SENSO Frame LVL Timber Advantage

Features:

  1. Superior Strength: Engineered for high-strength applications, SENSO Frame LVL beams offer superior load-bearing capacity.
  2. Enhanced Durability: SENSO Framing LVL Beams are resistant to shrinking, twisting, and warping, ensuring long-term durability.
  3. Precision Manufactured: Each SENSO LVL Beam is precision manufactured to meet stringent quality standards for consistent performance.
  4. Environmentally Friendly: SENSO Framing LVL Beam are made from sustainably sourced timber, reducing environmental impact.
  5. Versatile Applications: SENSO LVL Timber are suitable for a wide range of structural applications, from residential to commercial constructions.
  6. Veneers are bonded together using a type ‘A’ (marine) bond, which has proven performance for in excess of 50 years.

Benefits:

  • Cost-Efficient: SENSO Framing LVL offer superior performance at a cost-effective price point, reducing overall project costs.
  • Easy Installation: With its uniform dimensions and lightweight design, SENSO LVL Timber simplify the construction process, allowing for easy installation.
  • Improved Building Integrity: The strength and stability of LVL Beam enhance the overall integrity of the structures they are used in.
  • Reduced Waste: The precision manufacturing process of SENSO Framing LVL minimizes waste, aligning with eco-friendly construction practices.
  • Long Lifespan: Due to their enhanced durability, SENSO LVL Timber promise a long lifespan, making them a wise investment for long-term projects.
  • H2S Treated.
  • Support OEM or ODM Service.

SENSO Frame LVL beams

SENSO LVL Certified By



JAS-ANZ benchmark pefc FSC

By understanding the needs of the construction industry, SENSO Frame LVL beam has established itself as a one-stop solution provider. If you’re a building materials wholesaler or a construction site in Australia or New Zealand, consider enhancing your projects with SENSO quality LVL products. You’ll not only receive high-quality materials, but also professional advice and support tailored to your needs.

At ROCPLY, we’re committed to making construction simpler, more efficient, and more sustainable. With our advanced LVL products, we provide the essential building blocks for your projects. For professional construction solutions that you can trust, choose SENSO LVL – your partner in excellence.



SENSO Frame LVL Beam FAQ

Q: What is a SENSO Frame LVL Beam?

A: SENSO Frame LVL Beam is an engineered wood product made by gluing together rotary peeled veneers in a parallel grain orientation, creating a highly predictable, uniform, and structurally superior product.

Q: In what applications can SENSO Frame LVL be used?

A: SENSO Frame LVL Beams can be utilized in a broad range of applications including frames, beams, trusses, floor frame construction, stick roofs, and tall timber buildings.

Q: What are the advantages of using SENSO Frame LVL in construction?

A: SENSO Frame LVL Timber offer numerous advantages including superior strength and rigidity, resistance to warping and twisting, and dimensional stability. They are also environmentally friendly and cost-effective.

Q: How does SENSO Frame LVL Beam compare to traditional solid wood beams?

A: Unlike solid wood beams, SENSO Frame LVL Beams have engineered strength that comes from the parallel grain orientation of the veneers. They are also more uniform and have fewer natural defects, offering consistent performance and durability.

Q: Are SENSO Frame LVL Beams certified and compliant with building regulations?

A: Yes, SENSO Frame LVL Beams are certified under the JAS-ANZ standards and meet all relevant building codes and regulations.
